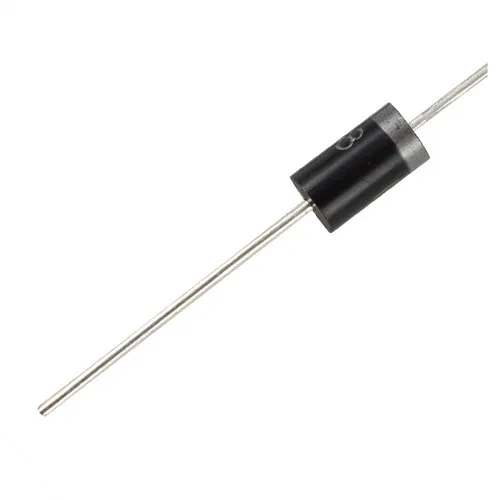

The 1N5408 is a high-voltage, high-current general-purpose rectifier diode capable of handling up to 1000V reverse voltage and 3A forward current. It is widely used in power supplies, battery chargers, inverters, and other applications where efficient rectification of AC to DC is required.
With its robust construction and reliability, the 1N5408 is ideal for protecting circuits from reverse polarity and for use in full-wave and half-wave rectifier setups. Suitable for both hobbyist and professional electronics projects, it fits easily into through-hole PCBs.
Now available at MICROSPARK – Your Trusted Electronic Component Shop.
Key Features:
- Maximum Repetitive Peak Reverse Voltage (V<sub>RRM</sub>): 1000V
- Average Forward Current (I<sub>F(AV)</sub>): 3A
- Peak Forward Surge Current: 200A
- Forward Voltage Drop: ~1V at 3A
- Package Type: DO-201AD (Axial lead)
- Polarity: Cathode marked with a band
- Mounting Type: Through-hole
- Operating Temperature: -65°C to +150°C
