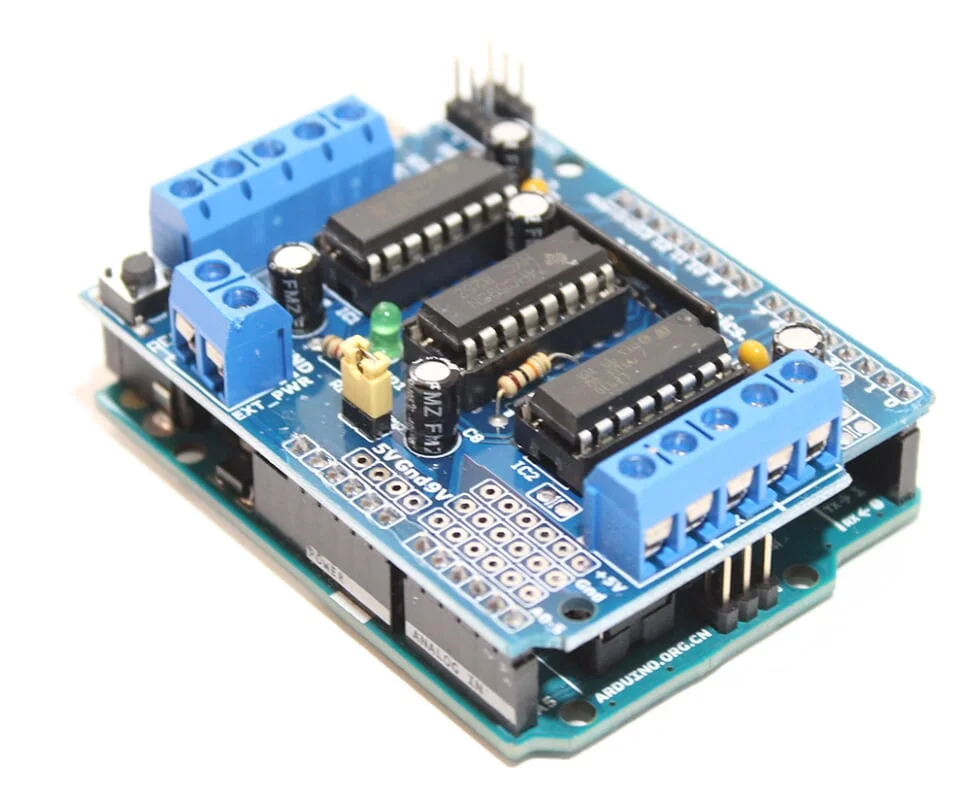

The L293D Motor Driver Shield is an easy-to-use expansion board designed to control DC motors and stepper motors with your Arduino. Powered by the L293D motor driver IC, this shield can control up to 4 DC motors or 2 stepper motors simultaneously, offering bidirectional control with adjustable speed via PWM. It also includes servo motor headers and external power support, making it perfect for robotics, automation, and motor-based projects.
This shield plugs directly onto Arduino UNO or MEGA boards and simplifies complex motor driving tasks into plug-and-play form. Ideal for beginners and advanced users working on mobile robots, robotic arms, or custom motion systems.
Now available at MICROSPARK – Your Trusted Electronic Component Shop!
Key Features:
- Motor Driver IC: L293D (dual H-bridge)
- Controls: Up to 4 DC motors or 2 stepper motors
- Motor Voltage: 4.5V to 36V
- Logic Voltage: 5V (from Arduino)
- Current Output: 600mA per channel (peak 1.2A)
- On-board pull-down resistors and protection diodes
- Servo motor headers (2x) for 5V servos
- External power input (via screw terminal)
Applications:
- Arduino-based robots and vehicles
- Motorized projects and automation
- Stepper motor control in 3D printers or CNC machines
- Educational electronics and prototyping
