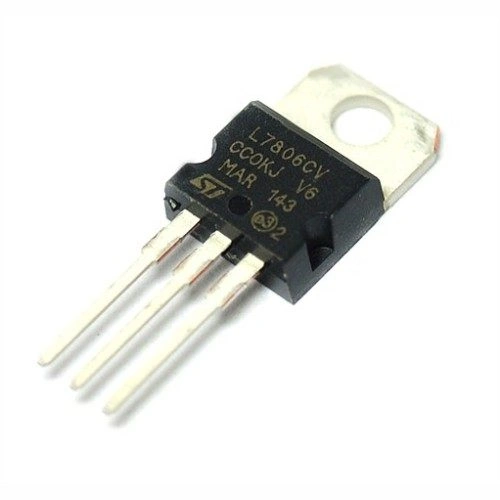

The L7806CV is a positive linear voltage regulator that provides a stable 6V output from higher input voltages, typically ranging from 8V to 25V. Designed to supply up to 1.5A of output current, it features internal current limiting, thermal shutdown, and safe area protection, making it reliable and robust for a wide range of electronics applications.
- Output Voltage: 6V (fixed)
- Input Voltage Range: 8V – 25V
- Output Current: Up to 1.5A
- Dropout Voltage: ~2V (typical)
- Package: TO-220
- Protections: Overheating, overcurrent, and short-circuit
- Applications: Power supply circuits, Arduino projects, embedded systems, general electronics
The L7806CV is ideal for converting 9V or 12V inputs into a clean 6V output, commonly used in DIY electronics, sensor modules, and microcontroller circuits.
