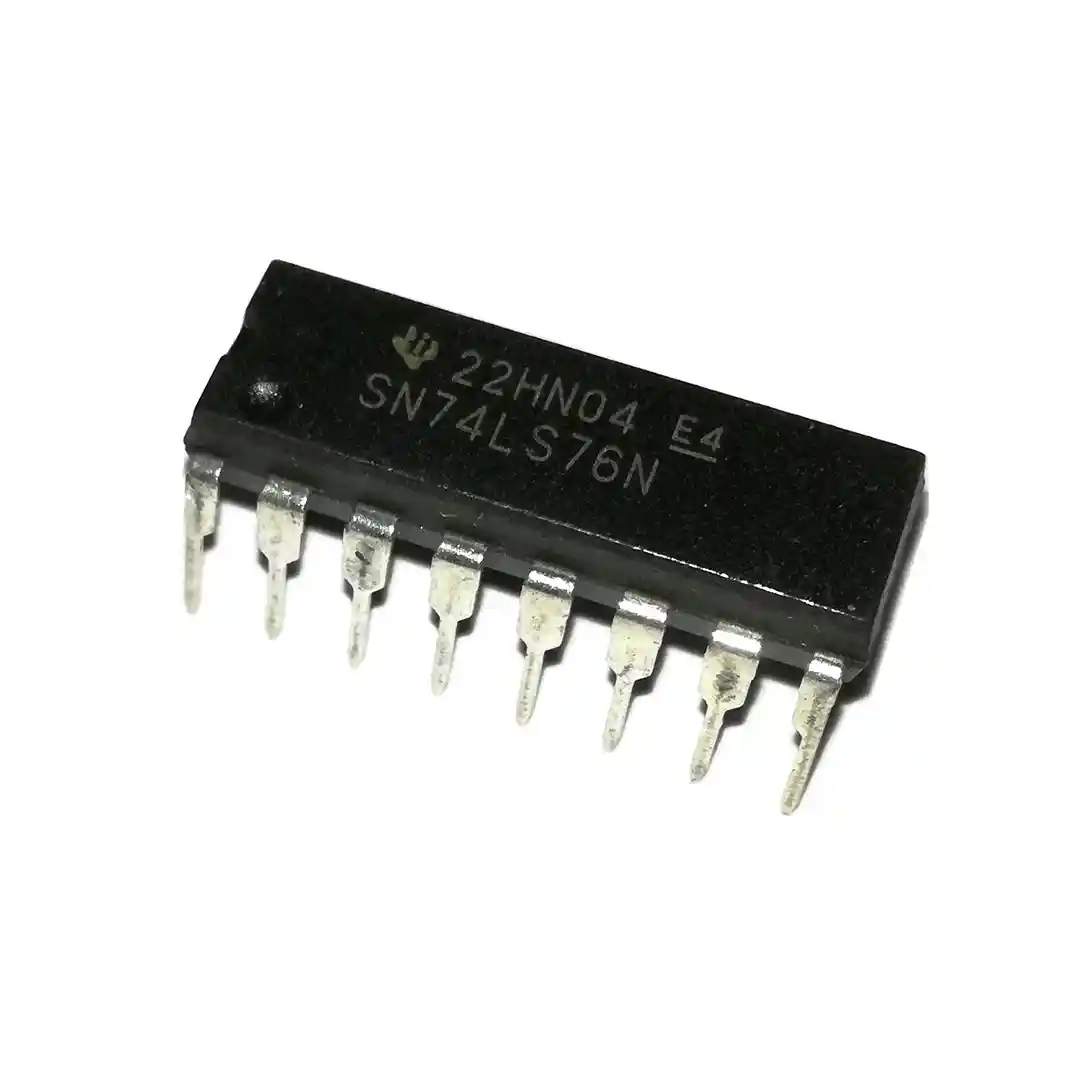

The IC 7476, also known as SN74LS76N, is a dual JK flip-flop featuring independent J, K, Clock (CLK), Set (Preset), and Reset (Clear) inputs for each flip-flop. Packaged in a standard DIP-16, it is part of the 74LS Low Power Schottky TTL family, offering high-speed operation and reliable switching characteristics.
The JK flip-flop is highly versatile and forms the building blocks of many sequential logic circuits, including counters, shift registers, and memory elements. The additional preset and clear functionality allows for direct setting or resetting of outputs, providing even greater control in complex logic designs.
Find the reliable and efficient SN74LS76N today at MICROSPARK - Your Trusted Electronic Component Shop, your go-to source for quality electronics.
Key Features:
- Logic Family: 74LS (Low Power Schottky TTL)
- Function: Dual JK Flip-Flop with Preset and Clear
- Operating Voltage (Vcc): 4.75V to 5.25V
- Input Logic Level:
- Low: Max 0.8V
- High: Min 2.0V
- Propagation Delay: ~20ns (typical)
- Package Type: DIP-16 (Dual Inline Package)
- Operating Temperature Range: 0°C to +70°C
Applications:
- Sequential logic circuits
- Frequency dividers and counters
- Memory storage elements
- Digital state machines
- Educational and training projects
Level up your digital designs with the trusted performance of SN74LS76N, proudly available at MICROSPARK!
