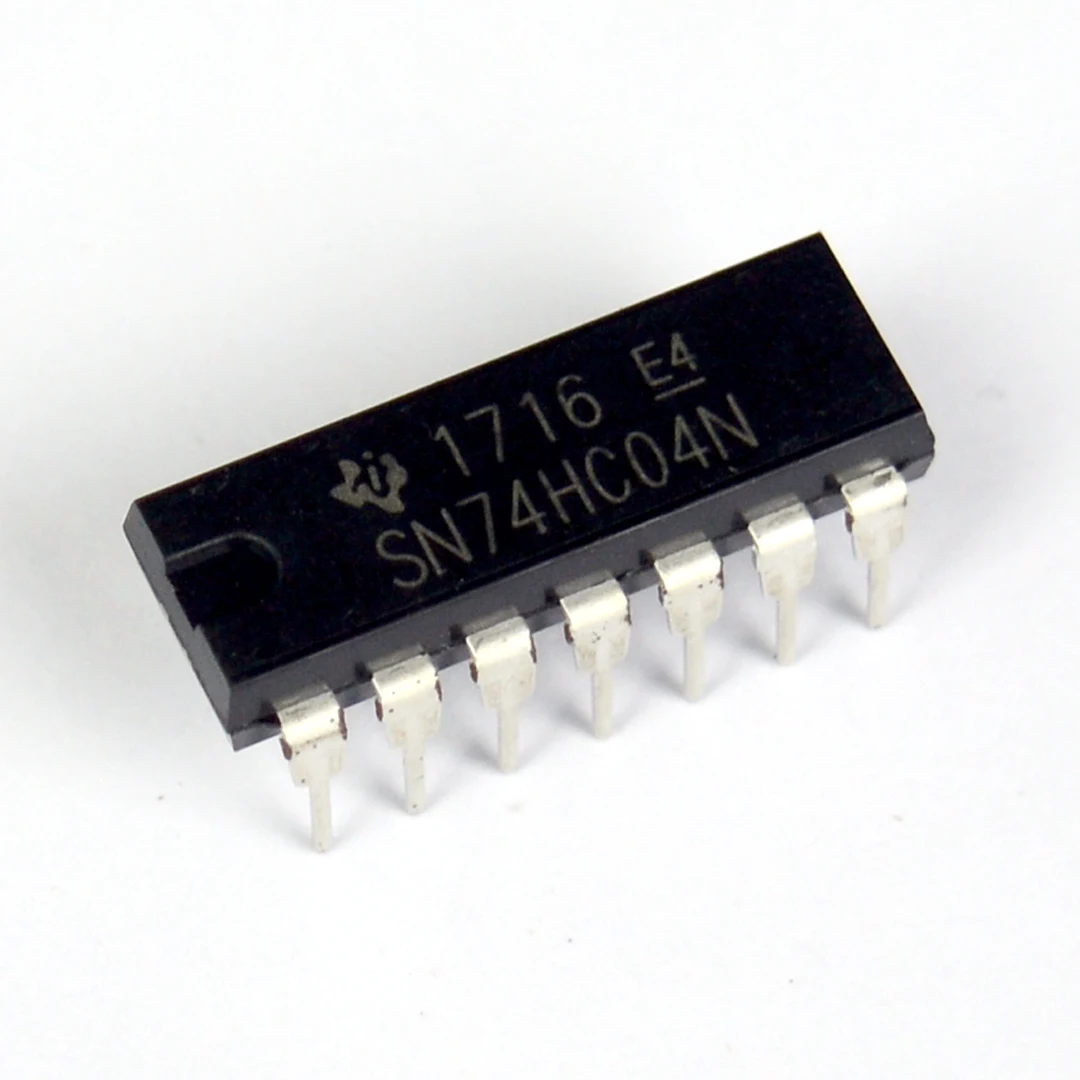

SN74HC04N – Hex Inverter (NOT Gate) IC
The SN74HC04N is a hex inverter integrated circuit (IC), meaning it contains six independent NOT gates, with the following specifications:
- Logic Family: 74HC (High-speed CMOS)
- Number of Inverters: 6 (independent NOT gates)
- Operating Voltage (Vcc): 2V to 6V
- Input Logic Level (at 5V Vcc):
- Low: Max 0.8V
- High: Min 2.0V
- Output Current: ±25 mA max per pin
- Propagation Delay: ~8 ns (at 5V)
- Package: DIP-14 (Dual Inline Package)
- Operating Temperature: –40 °C to +85 °C
Commonly used in logic level shifting, signal inversion, and oscillator circuits.
PIN DIAGRAM
TRUTH TABLE
