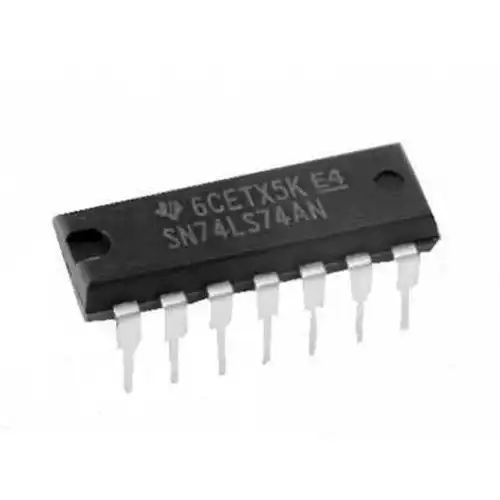

The IC 7474, also known as SN74LS74N, features two independent D-type flip-flops in a DIP-14 package. Part of the 74LS Low Power Schottky TTL family, this IC delivers fast switching speeds and low power consumption, making it ideal for clocked data storage and sequential logic applications.
Each flip-flop includes direct Set (Preset) and Clear (Reset) inputs, along with a Clock input that captures the data present at the D input. This functionality is essential in building reliable data registers, counters, and state machines.
You can find the dependable SN74LS74N available at MICROSPARK - Your Trusted Electronic Component Shop, trusted by electronics enthusiasts and professionals alike.
Key Features:
- Logic Family: 74LS (Low Power Schottky TTL)
- Function: Dual D-type Positive-Edge Triggered Flip-Flop with Preset and Clear
- Operating Voltage (Vcc): 4.75V to 5.25V
- Input Logic Level:
- Low: Max 0.8V
- High: Min 2.0V
- Propagation Delay: ~20ns (typical)
- Package: DIP-14 (Dual Inline Package)
- Operating Temperature Range: 0°C to +70°C
Applications:
- Data storage registers
- Frequency dividers
- Shift registers
- Sequential logic circuits
- Educational and experimental electronics
Build faster, smarter digital circuits with the SN74LS74N, proudly offered by MICROSPARK!
