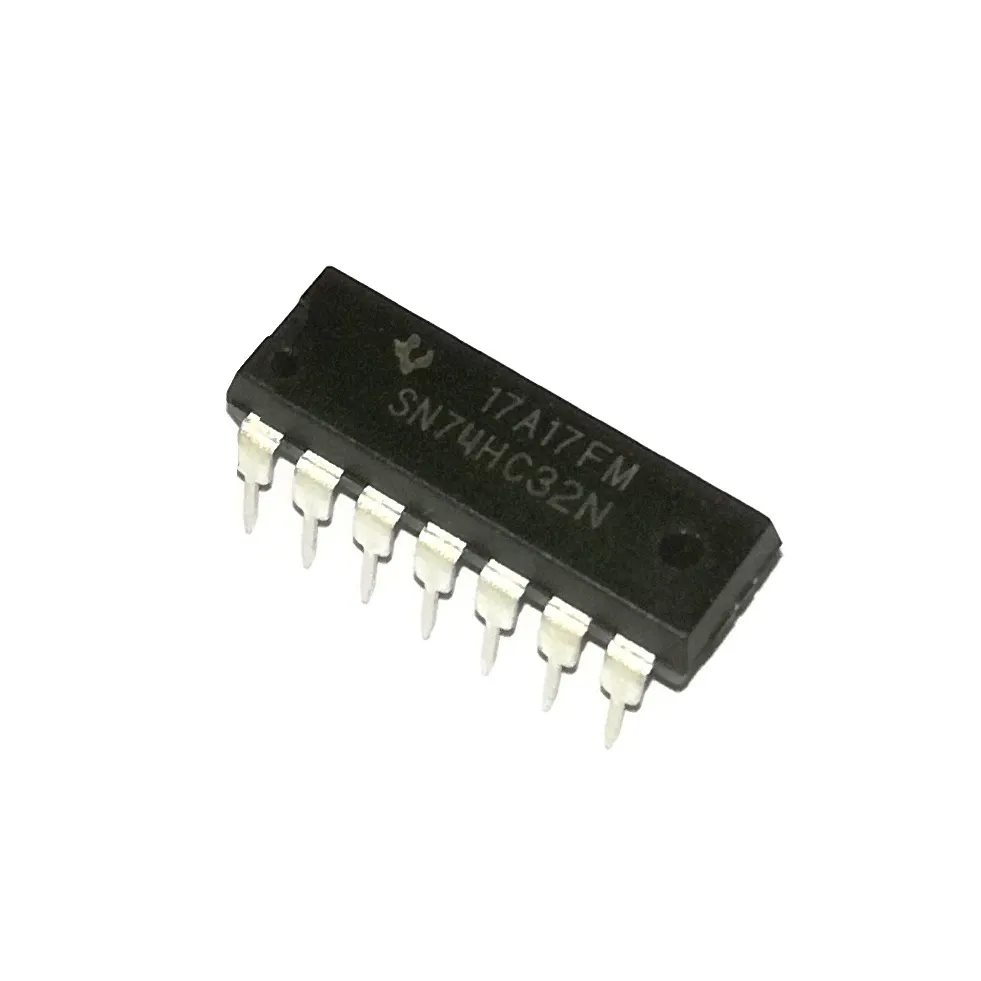

SN74HC32N – Quad 2-Input OR Gate IC
The SN74HC32N is a quad 2-input OR gate integrated circuit (IC) with the following key specifications:
- Logic Family: 74HC (High-speed CMOS)
- Number of Gates: 4 (each with 2 inputs)
- Operating Voltage (Vcc): 2V to 6V
- Input Logic Level (at 5V Vcc):
- Low: Max 0.8V
- High: Min 2.0V
- Output Current: ±25 mA max per pin
- Propagation Delay: ~8 ns (at 5V)
- Package: DIP-14 (Dual Inline Package)
- Operating Temperature: –40 °C to +85 °C
Perfect for performing logic OR operations in digital electronic circuits.
