The IC ADC0804 (ADC0804LCN) is a widely used 8-bit Analog-to-Digital Converter designed to convert analog input signals into corresponding digital values. It operates using the successive approximation method, ensuring accurate and stable conversion performance.
This IC features a single-channel analog input and provides an 8-bit parallel digital output, making it easy to interface with microcontrollers, digital systems, and embedded applications. It includes an internal clock generator, or can be driven by an external clock, offering flexibility in timing control.
Built using CMOS technology, the ADC0804 offers low power consumption, good noise immunity, and reliable operation. It is commonly used in sensor interfacing, data acquisition systems, and educational electronics projects.
Key Features
- Resolution: 8-bit ADC
- Conversion Type: Successive Approximation
- Input Channels: Single analog input
- Output Type: 8-bit parallel digital output
- Operating Voltage: 5V DC
- Built-in clock generator (with external RC components)
- Compatible with TTL/CMOS logic levels
- Low power consumption
- Package Type: DIP-20
Applications
- Analog sensor data acquisition
- Microcontroller interfacing
- Digital measurement systems
- Signal processing circuits
- Educational and lab experiments
Package Includes

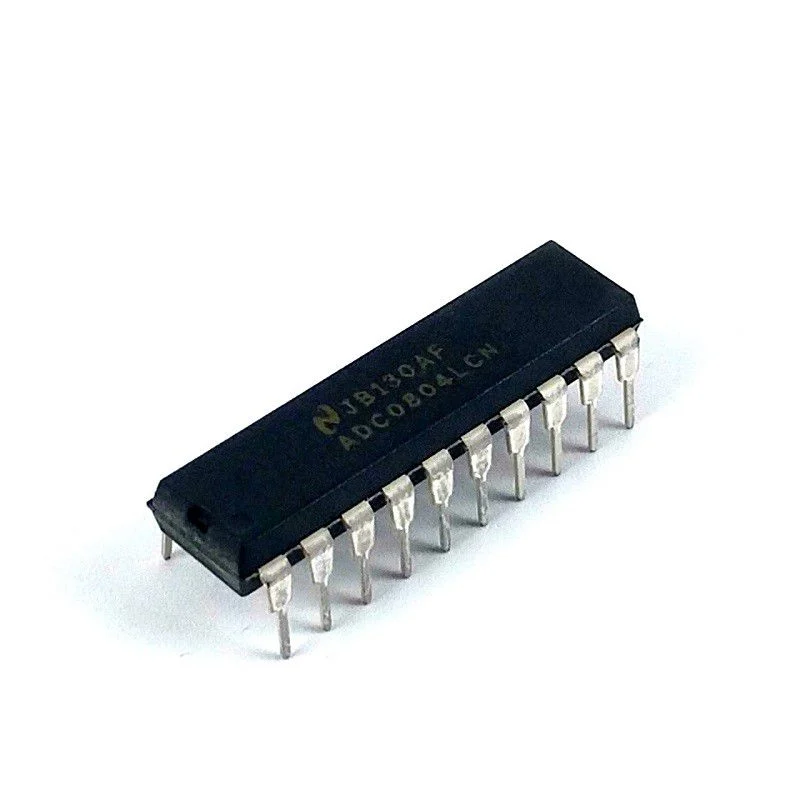

- 1 × IC – ADC0804 8-Bit CMOS ADC (ADC0804LCN)
