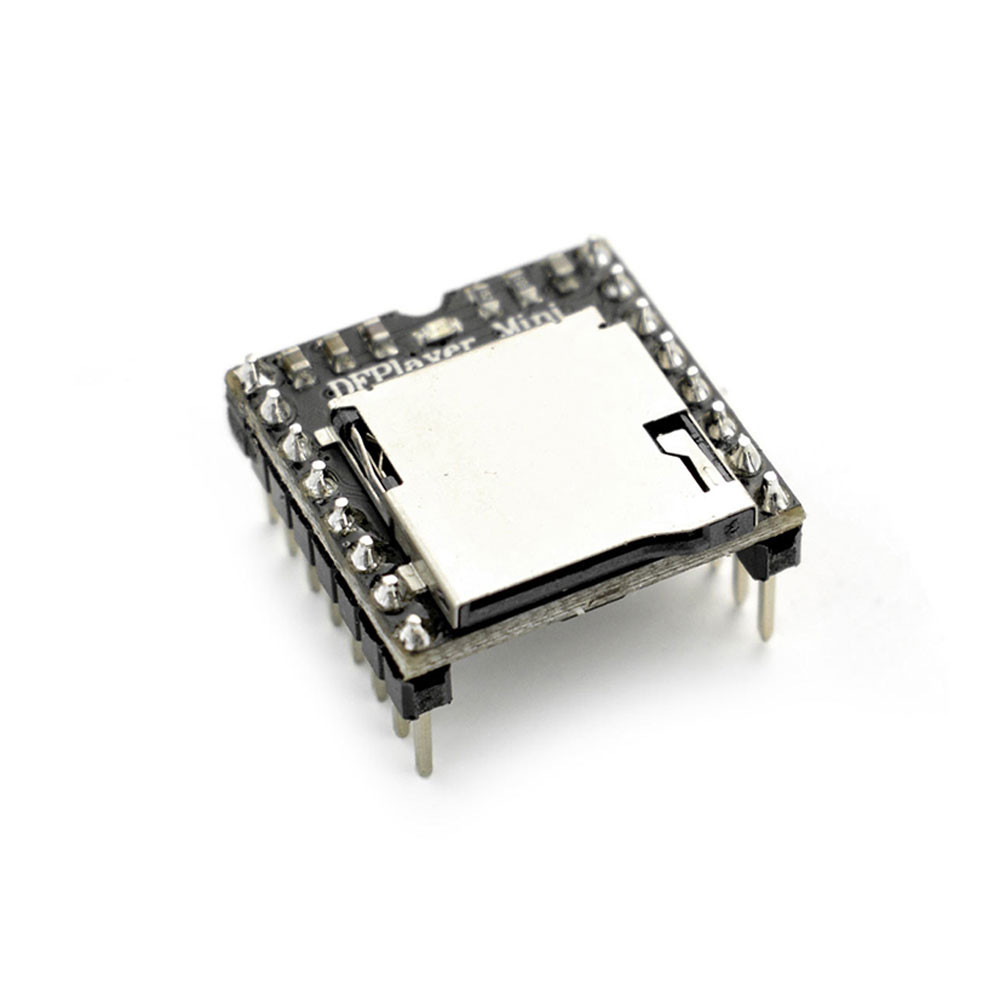

The Mini MP3 and WAV File Player – DFPlayer (UART) is a versatile and cost-effective audio playback module designed to add high-quality sound capabilities to embedded systems and DIY electronics projects. Based on the popular MP3-TF-16P / FN-M16P platform, the module supports MP3 and WAV audio formats stored on a microSD card up to 32GB using FAT16 or FAT32 file systems.
Equipped with a 24-bit DAC, the DFPlayer delivers clear audio with a 90dB dynamic range and 85dB signal-to-noise ratio (SNR). Its integrated 3W audio amplifier allows direct connection to a small speaker, while stereo DAC outputs can be used with external amplifiers for enhanced audio quality.
The module can be easily controlled using UART serial commands from popular development boards such as Arduino, ESP32, STM32, Raspberry Pi Pico, and Teensy. It also supports standalone operation using pushbuttons, eliminating the need for a microcontroller in simple applications.
Additional features such as 30 volume levels, 6 equalizer presets, random playback, and a BUSY status output pin make it suitable for interactive audio projects, voice announcements, sound effects, alarms, robotics, and IoT applications.
Available at Microspark Store – Your Trusted Electronic Component Store!
Key Features
- Model: MP3-TF-16P / FN-M16P (DFPlayer Mini Compatible)
- Supports MP3 and WAV audio formats
- Supports FAT16 and FAT32 file systems
- Compatible with microSD cards up to 32GB
- High-quality 24-bit DAC audio output
- Dynamic Range: 90dB
- Signal-to-Noise Ratio (SNR): 85dB
- Built-in 3W audio amplifier
- Direct speaker output support
- Stereo analog audio output
- UART serial control interface
- Standalone pushbutton operation
- 30 volume levels
- 6 EQ (Equalizer) modes
- Audio IC - YX5200
- Amplifier IC - YX8002
- Operating Voltage - 3.2V – 5V DC
- Random playback support
- BUSY output for playback status monitoring
- USB support for SD card file management
- Compatible with Arduino, ESP32, STM32, Teensy, and other microcontrollers
Applications
- Arduino audio playback projects
- ESP32 voice assistant systems
- Interactive electronics projects
- Sound-enabled robots and toys
- Voice announcements and alerts
- Home automation notifications
- DIY MP3 players
- Educational electronics projects
- Embedded audio systems
- Interactive art installations
Package Includes
- 1 × Mini MP3 and WAV File Player – DFPlayer (UART)
