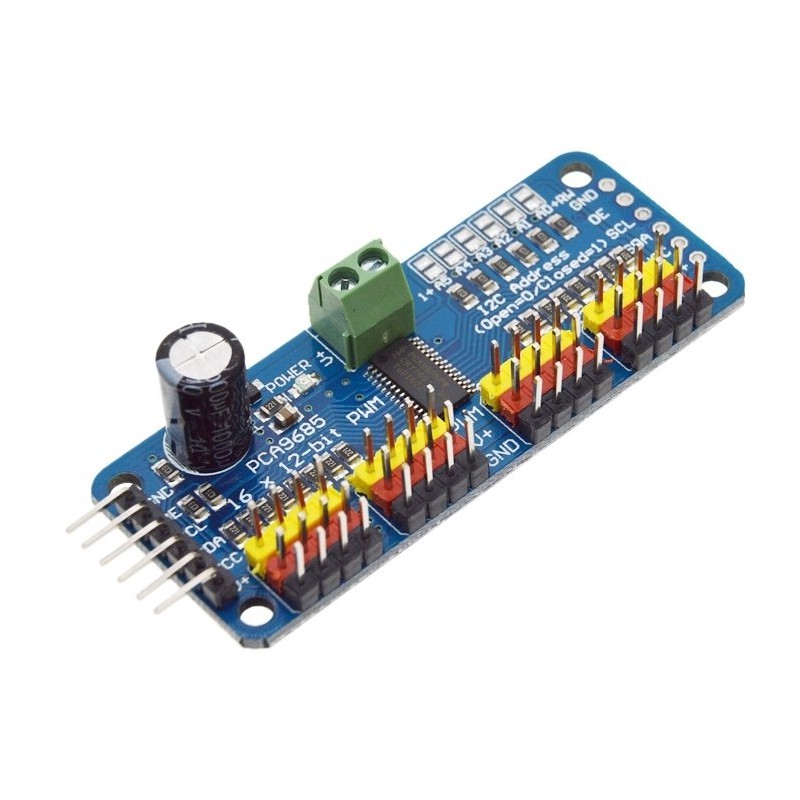

The Servo Driver PCA9685 PWM I²C 16 Channel 12-bit Module is a powerful and flexible PWM controller designed to expand the number of PWM outputs available to your microcontroller. Based on the PCA9685 chip, this module communicates over the I²C bus, allowing you to control up to 16 channels of PWM or servo signals using just two I²C pins (SDA and SCL).
With 12-bit resolution (4096 steps) per channel, the PCA9685 provides smooth and precise control for servos, LEDs, motors, or other PWM-compatible devices. It is compatible with Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller platforms, making it ideal for robotics, multi-servo installations, lighting effects, and automated systems. A dedicated 5V power input for servos helps isolate load power from the logic supply.
Available at Microspark Store – Your Trusted Electronic Component Store!
Key Features
- Controller IC: PCA9685
- Interface: I²C (only SDA & SCL required)
- PWM Channels: 16 independent outputs
- PWM Resolution: 12-bit (4096 steps)
- Operating Voltage (Logic): 3.3V / 5V compatible
- Servo/Tailored PWM support
- Address selectable (supports multiple modules on same bus)
- Dedicated V+ terminal for servo/motor power supply
- Compact and breadboard-friendly PCB
Applications
- Controlling up to 16 servos (robot arms, legs, grippers)
- LED dimming arrays and lighting effects
- Motor speed and position control
- Multi-PWM signal generation
- Robotics platforms requiring multiple outputs
- IoT and automation PWM control projects
Package Includes
- 1 × PCA9685 16-Channel 12-bit PWM I2C Servo Driver Module
