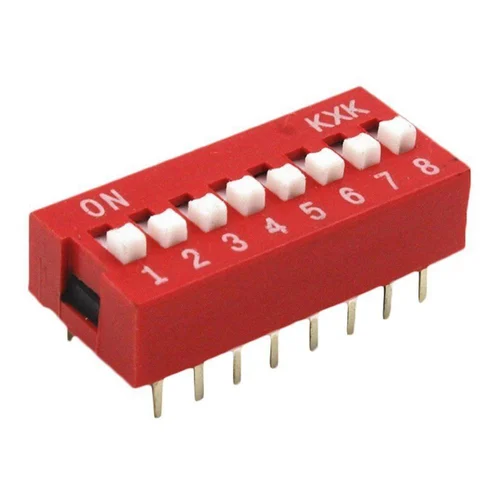

The DIP Switch - 16 Pin - 8 Bit is a compact set of 8 individual switches arranged in a Dual Inline Package (DIP) format with 16 pins. Each switch can independently connect or disconnect a circuit, allowing for manual setting of binary data, hardware addresses, or function modes.
Commonly used in microcontroller applications, industrial control panels, and prototyping boards, this switch module is easy to solder onto PCBs or plug into standard breadboards. Now available at MICROSPARK - Your Trusted Electronic Component Shop, ensuring reliable performance and easy integration into your projects.
Key Features:
- Number of Switches (Bits): 8
- Total Pins: 16
- Switch Type: SPST (Single Pole Single Throw)
- Contact Rating: Typically low voltage and current (e.g., 24V DC / 25mA)
- Actuator Style: Slide type
- Mounting: Through-hole (DIP format)
- Durability: High mechanical life cycle
- Package Size: Standard DIP spacing for easy PCB mounting
Applications:
- Microcontroller mode selection
- Hardware address settings (e.g., for I2C/SPI devices)
- Manual feature toggling
- Prototyping and development boards
- Industrial and consumer electronics
The DIP Switch - 16 Pin - 8 Bit from MICROSPARK is the perfect, compact solution for manually setting binary options directly on your circuit with ease and reliability!
