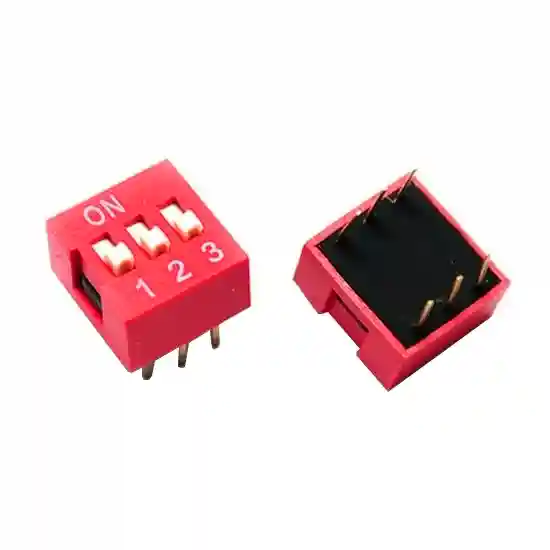

The 6-Pin DIP Switch – 3 Input consists of three SPST (Single Pole Single Throw) switches integrated into one Dual In-line Package (DIP). Each switch has 2 pins, providing manual ON/OFF control for three separate inputs. This switch is ideal for selecting logic states, device modes, or address settings in embedded systems and digital electronics.
Its compact DIP design fits standard 2.54mm (0.1 inch) pitch PCBs and breadboards, making it convenient for both prototyping and final applications.
- Number of Switches: 3
- Total Pins: 6 (2 per switch)
- Switch Type: SPST (slide switch)
- Package Type: DIP (standard PCB-compatible layout)
- Pin Pitch: 2.54mm
- Voltage Rating: ~24V DC
- Current Rating: ~25mA (ideal for signal-level applications)
- Contact Resistance: Low (for reliable switching)
- Applications:
- Mode and feature selection in microcontroller projects
- Manual input controls
- Hardware address settings (e.g., I2C, UART configurations)
- Logic level switching and testing
The DIP Switch – 6 Pin – 3 Input is perfect for projects where compact, reliable, and configurable manual inputs are needed.
