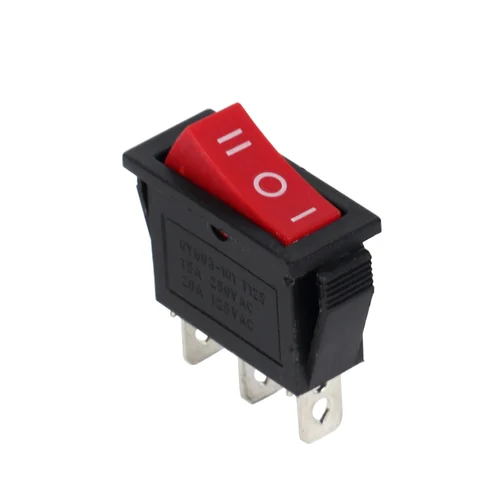

The Rocker Switch – ON/OFF – 3 Pin is a Single Pole Single Throw (SPST) switch designed for toggling power in electronic circuits. The third pin is typically used for an integrated LED indicator, which lights up when the switch is in the ON position, offering visual feedback.
This switch is ideal for panel mounting and is commonly used in power supplies, DIY electronics, automotive setups, and home appliances. It features a durable design with a snap-action feel for reliable switching.
- Switch Type: Rocker
- Configuration: SPST (ON/OFF)
- Number of Pins: 3 (Power In, Power Out, LED Ground)
- Voltage Rating: 125V–250V AC (depending on model)
- Current Rating: 6A–10A (typical)
- Mounting Type: Panel mount (snap-in)
- Terminal Type: Solder lugs or quick-connect tabs
- LED Indicator: Built-in (lights up when ON)
- Applications:
- Power control for electronics
- Home appliances and power tools
- DIY and hobby projects
- Automotive and marine systems
The 3-pin ON/OFF rocker switch adds both functionality and visual status indication, making it a great choice for user-friendly power control.
