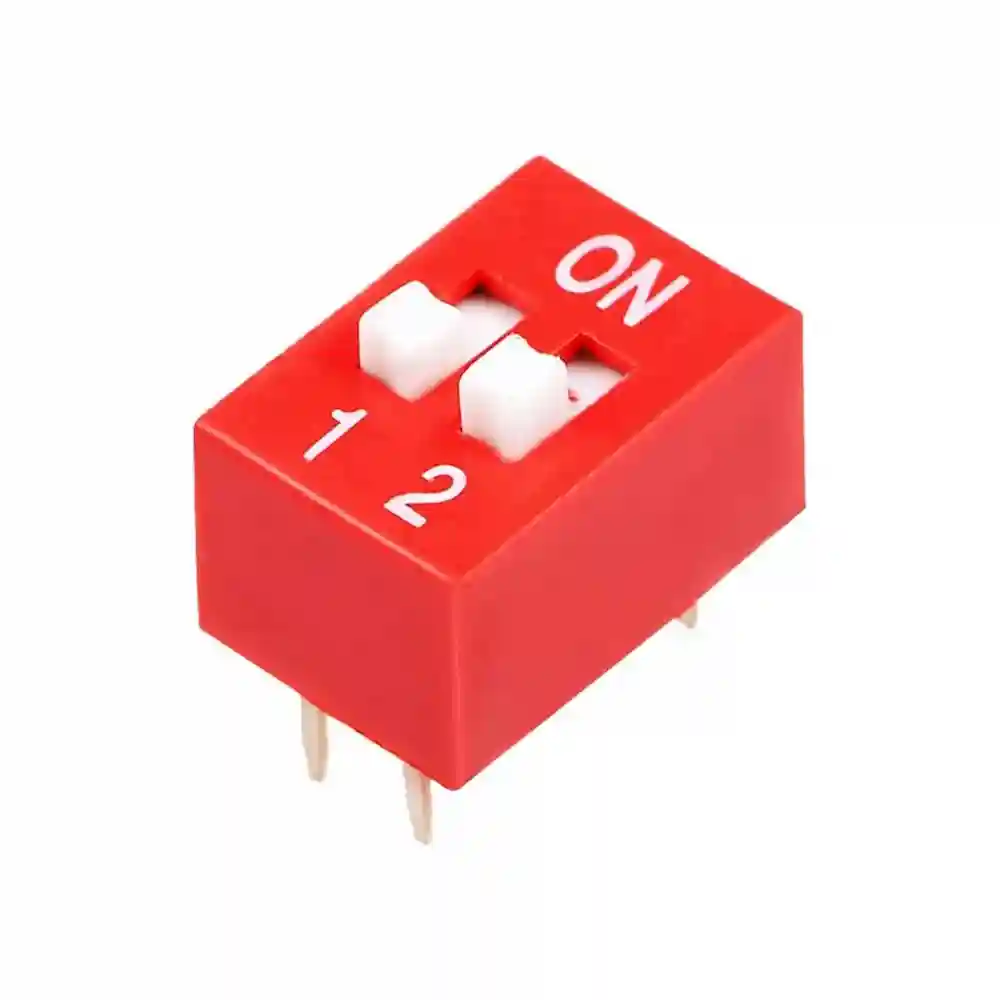

The 4-Pin DIP Switch – 2 Input contains 2 independent SPST (Single Pole Single Throw) slide switches, each with 2 pins, making up a total of 4 pins. It provides simple ON/OFF control for digital inputs and is commonly used for manual hardware configurations in embedded systems, logic circuits, and microcontroller applications.
Each switch can be toggled independently, allowing for two separate binary settings. The DIP form factor ensures easy integration with standard breadboards or PCB layouts using a 2.54mm (0.1 inch) pitch.
- Number of Switches: 2
- Total Pins: 4 (2 pins per switch)
- Switch Type: SPST (slide switch)
- Voltage Rating: ~24V DC
- Current Rating: ~25mA (signal level)
- Package Type: DIP (Dual In-line Package)
- Pitch: 2.54mm (standard spacing)
- Applications:
- Binary input for microcontrollers
- Logic level selection
- Hardware feature toggles
- Debug or test mode selectors
The 4-Pin DIP Switch – 2 Input is a simple and efficient solution for adding manual controls to your projects without the need for software-based settings.
