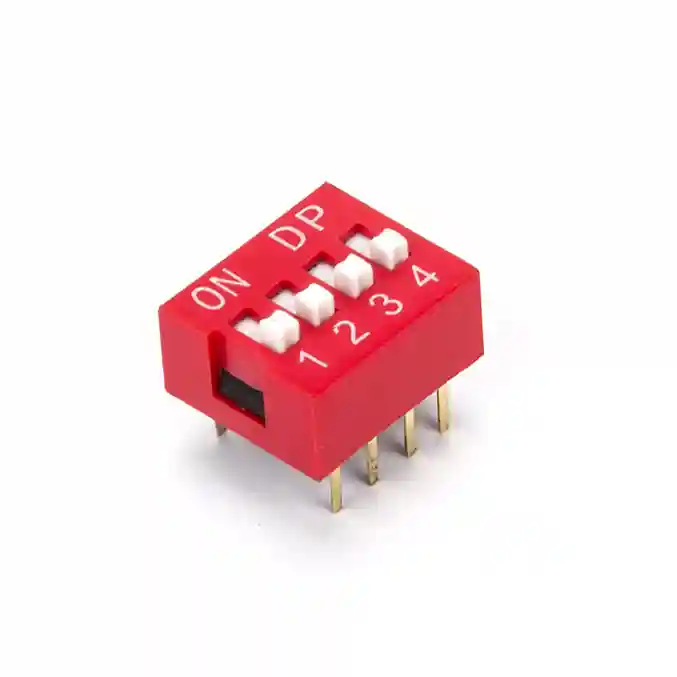

The 8-Pin DIP Switch – 4 Input features four SPST (Single Pole Single Throw) slide switches housed in a standard DIP (Dual In-line Package). Each switch has 2 pins, allowing independent ON/OFF control of four different signals or inputs. This compact and reliable component is ideal for configuring logic levels, selecting operation modes, or setting hardware addresses.
With a 2.54mm (0.1 inch) pin pitch, it's fully compatible with breadboards and standard PCBs, making it perfect for both prototyping and permanent designs.
- Number of Switches: 4
- Total Pins: 8 (2 pins per switch)
- Switch Type: SPST (slide)
- Package Type: DIP (Dual In-line)
- Pin Pitch: 2.54mm (0.1 inch)
- Voltage Rating: ~24V DC
- Current Rating: ~25mA (signal level)
- Contact Resistance: Low (for consistent operation)
- Applications:
- Manual input control for microcontrollers
- Device mode or feature selection
- I2C or peripheral address configuration
- Debug/test options in embedded systems
The 8-Pin DIP Switch – 4 Input is a simple, effective solution for providing multiple manual inputs directly on your board—especially useful in embedded design, robotics, and digital logic systems.
