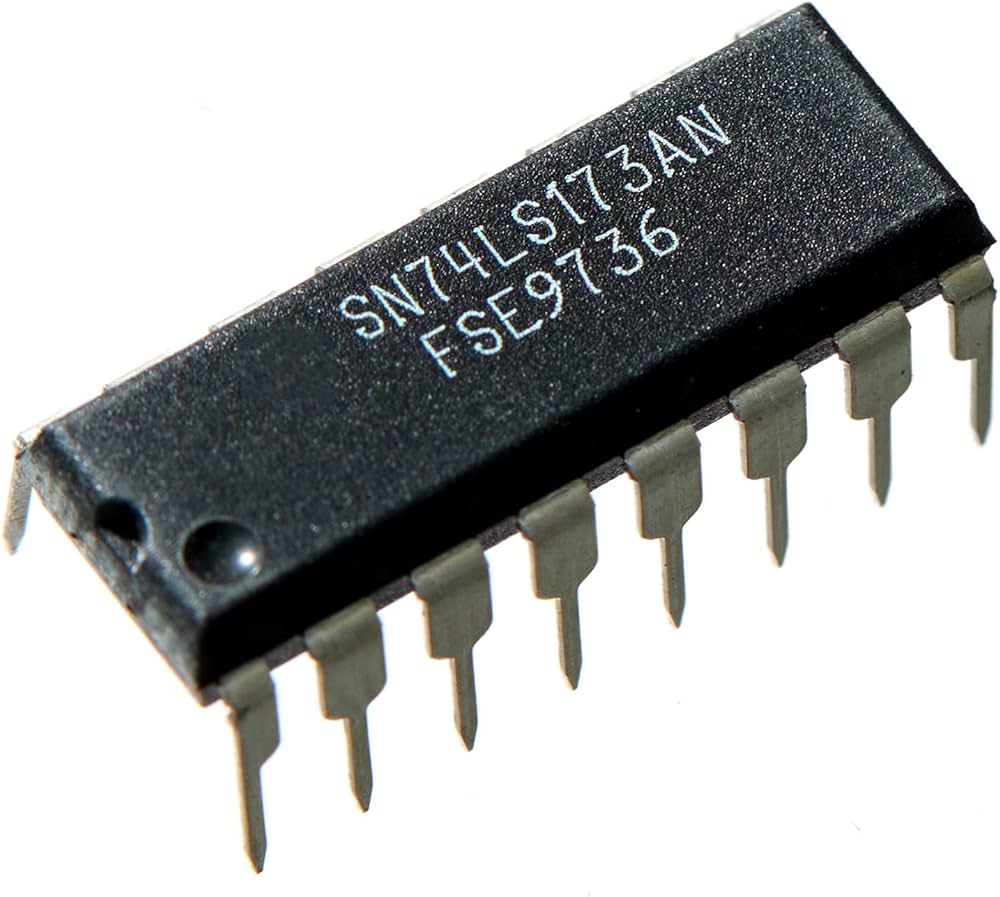

The SN74LS173N (IC 74173) is a 4-bit D-type flip-flop register with 3-state outputs, designed for high-speed data storage and transfer in digital circuits. It features two enable inputs and a clear input for flexible control. The 3-state outputs allow direct connection to a bus system, making it suitable for buffering and data latching applications in microprocessor and memory systems.
Built with reliable Low Power Schottky (LS) TTL technology, it ensures fast switching times and low power dissipation.
Available at Microspark Store – Your Trusted Electronic Component Store!
Key Features:
- Logic Family: 74LS (Low Power Schottky TTL)
- Function: 4-Bit D-Type Register with 3-State Outputs
- Supply Voltage: 4.75V to 5.25V
- Typical Propagation Delay: 22ns
- Output Type: 3-State TTL Compatible
- Operating Temperature Range: 0°C to +70°C
- Package Type: DIP-16 (Dual Inline Package)
Applications:
- Data storage and buffering
- Microprocessor and memory interface systems
- Parallel data transfer circuits
- Control and data latching applications
Package Includes:
- 1 × IC - 74173 - 4-Bit D Type Flip Flop Registers (SN74LS173N)
Available at Microspark Store – Your Trusted Electronic Component Store! At Microspark Store, we ensure every product is quality-checked and tested before shipping, so you can buy with confidence and start building without worries.
